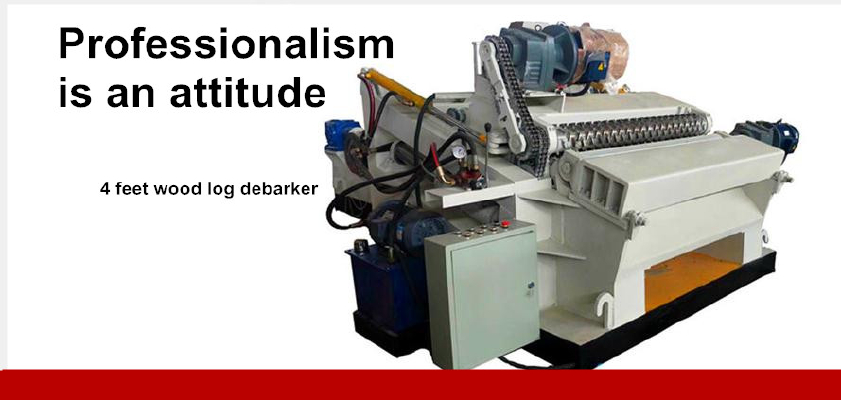

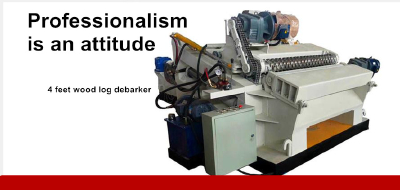

4 Feet Wood Log Debarker Machine for Tree Log

4 Feet Wood Log Debarker Machine for Tree Log

  • FOB Price:US $10,000 -50,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Year
  • Port: qingdao
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
| Factory
Experience:2014-03-24
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  china
  • Brand Name:  Linyi Qunshan Machinery Co.,Ltd
  • Model Number:  QSD1300- 600

Product Description

1.Log Debarker and Rounder is used for log before peeling.
2.it is suitable for the eucalyptus, pine, cotton wood .
3.with principle of peeling, removing the log's skin ,rounding and straighting logs.
4.Hydraulic driven feed mechanism,can quickly, efficiently put log removal of bark,
round. One set debarker can supply 2 sets rotary peeling machine .
5.it saves the original manual peeling, rounding procedure, save 5-6 human labor.
6.The single-roller head can be adjusted up and down freely, solving the problem of scrap bark plugging.

  • Place of Origin:  china
  • Brand Name:  Linyi Qunshan Machinery Co.,Ltd
  • Model Number:  QSD1300- 600

Technical Parameters







Universal type
4-feet log debarker and log rounder




Dimensions (length x width x height)

3200mm x 2200m x 1800mm
Working size

1300mm
Maximum processing diameter

600mm
Blade size(length x width x thick)1400mm x140mm x 12.7mm
Linear velocity52m/min
Roller diameterSingle roller diameter150mm

Double rollers diameter150mm
The single-roller head of the machine increases the hydraulic device, and the rounding speed is faster, the effect is good, and it is not easy to plug the skin and the card board.
motorOil pump motor5.5kw x 1 set

Single roller motor7.5kw x 1set

Double rollers motor11kw x 1set
Tubing diameter16mm
Hydraulic cylinderΦ63 (inner diameter) × 550mm (stroke)
Slideway Cylinder: Φ63 (inside diameter) × 550mm (stroke)
Slideway : Φ125mm×1200mm The bracket is made of cast steel. The cylinder body is made of 45# carbon steel by high-frequency quenching technology for surface treatment, and the cylinder body is oil-immersed and sealed.
ReducerSingle roller reducerBWY3-17:1-7.5KW×1

Double rollers reducerBWY4-23:1-11KW×1
